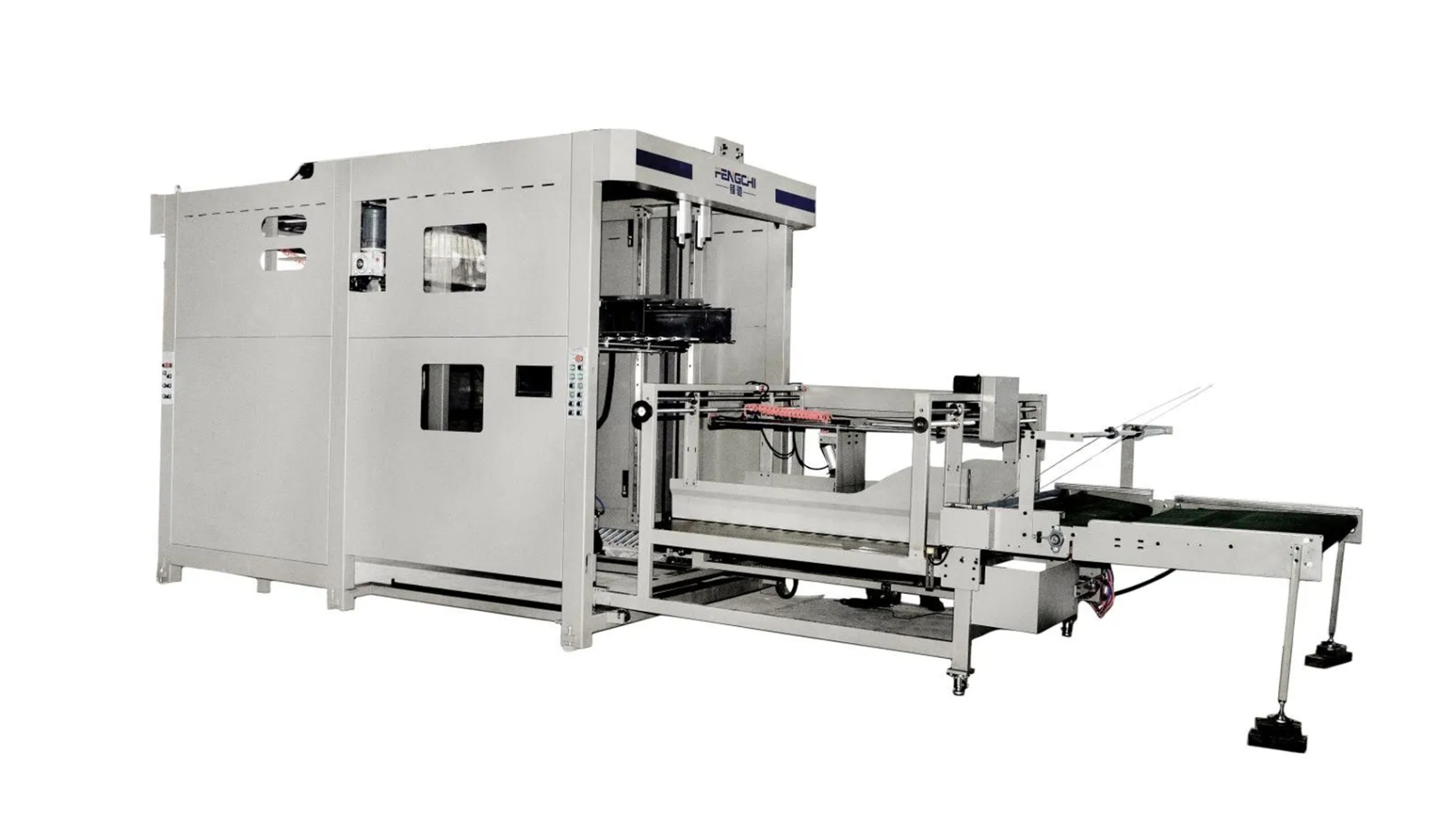

FZ 2100 Flip Flop Stacker

1) Full servo motion control, high-speed, stable and trouble-free. 2) High-speed silent track, quiet operation and long life. 3) Minimal operating system, safe and reliable without training, easy to operate. 4) With pallet auto change function.
CONTACT US
productInfo
Product enquiry
FZ 2100 Flip Flop Stacker
Please leave us a message and we will get back to you as soon as possible
Email
Your message
You can give us more of your information so that we can provide you with more appropriate services
Name (Optional)
Phone (Optional)
Country/Region (Optional)

Product Information

Product Description

Technical Parameter

Models FZ-2100
Max. Sheet size (WxL) 2100mm x 2100mm
Min. Sheet Size (WxL) 420mm x 380mm
Max. Speed  16000 pcs/hour
Machine Weight 4500 kg
Dimensions (LxWxH) 8.5x 3.05 x 3.2 m
Power 380V AC/4P,  13kw
Air source 0.8MPa >5.5KW



Detail Descriptions

Paper Division

  • The three-stage independent frequency conversion speed regulation mechanism can adjust the speed of each section of the paper according to the thickness of the paper output from the main machine press, and there is enough time space to fully dilute the paper to facilitate the stacking. Even if the host speed is fast, it will not cause the press paper to accumulate.

Paper turning mechanism

  • It adopts high-speed silent track, which is smooth, smooth, silent, wear-free and long life.
  • Turning servo and lifting servo electronic cam lock, the turning and lifting speed can be adjusted arbitrarily.

Control Section

  • Simple man-machine interface, only need to input paper size, one-key adjustment, no need to use any tools, one-key start. The equipment adopts operation control technology, so when an abnormal alarm occurs, it can be started directly after the abnormality is eliminated. It does not need to be reset and reset to zero like other equipment. The cumbersome procedure causes the main machine of the laminating machine to stop and wait.

Electrical control system

  • Adopting the international leading motion control technology, all actions (paper separation, lifting, flipping, pushing paper, paper table lifting) flexible curve control and digital control. Make the whole machine run smoother, faster, more stable, and easier to operate.

About FENGCHI

About FENGCHI

Guangdong FENGCHI Printing Machinery Co., Ltd - High-tech enterprise located in Dongguan, a hub of 'International Manufacturing', boasting a 15,000m² factory with advanced processing and research institutions. Specializing in R&D, production, and sales of high-speed flute laminators and flip flop stackers, our team of experienced engineers and researchers with 20+ years in flute laminators and 35+ years in print pack industry consistently absorb leading-edge technology to meet and exceed customer expectations.

Success Cases

Paper to Cardboard

GE series is universal type for paper to cardboard, art board, cardboard to cardboard, paper to solid board and corrugated board. Full servo drive of top feeder, suction belt feeder with servo tracking system, offering high speed 14000+ pcs/hour.

Paper to Corrugated Board

Gw Series is heavy duty type, strongly for laminating corrugated board of G, F, E, B, C, A flute 2ply, 4ply, upto 10mm thickness, even warp board can be feed smoonthly with high speed. Full servo drive of top feeder, bottom feeder with tracking system provide 22000+ speed.

Jumbo Carton

Jumbo printed paper laminated to corrugated board (3ply, 4ply, 5ply), such as shoes box, TV box, by GW-2200L Intelligent High Speed Flute Lamiantor with lead edge feeder, greatly improved the production of jumbo box.





  • Product Description

  • Detail Descriptions

  • About FENGCHI

Technical Parameter

Models FZ-2100
Max. Sheet size (WxL) 2100mm x 2100mm
Min. Sheet Size (WxL) 420mm x 380mm
Max. Speed  16000 pcs/hour
Machine Weight 4500 kg
Dimensions (LxWxH) 8.5x 3.05 x 3.2 m
Power 380V AC/4P,  13kw
Air source 0.8MPa >5.5KW



Paper Division

  • The three-stage independent frequency conversion speed regulation mechanism can adjust the speed of each section of the paper according to the thickness of the paper output from the main machine press, and there is enough time space to fully dilute the paper to facilitate the stacking. Even if the host speed is fast, it will not cause the press paper to accumulate.

Paper turning mechanism

  • It adopts high-speed silent track, which is smooth, smooth, silent, wear-free and long life.
  • Turning servo and lifting servo electronic cam lock, the turning and lifting speed can be adjusted arbitrarily.

Control Section

  • Simple man-machine interface, only need to input paper size, one-key adjustment, no need to use any tools, one-key start. The equipment adopts operation control technology, so when an abnormal alarm occurs, it can be started directly after the abnormality is eliminated. It does not need to be reset and reset to zero like other equipment. The cumbersome procedure causes the main machine of the laminating machine to stop and wait.

Electrical control system

  • Adopting the international leading motion control technology, all actions (paper separation, lifting, flipping, pushing paper, paper table lifting) flexible curve control and digital control. Make the whole machine run smoother, faster, more stable, and easier to operate.
