Main Characteristics

1. Adopting advanced Control System, only need to input the sheet size and then the system will adjust automatically. Glue quantity display at screen, can be adjusted automatically.
2. Maximum working speed can reach at 14000 sheets/hour, the working efficiency was increased exponentially when compared to the previous model.
3. Adopting advanced high speed motion control servo tracking system to ensure the laminating accuracy.

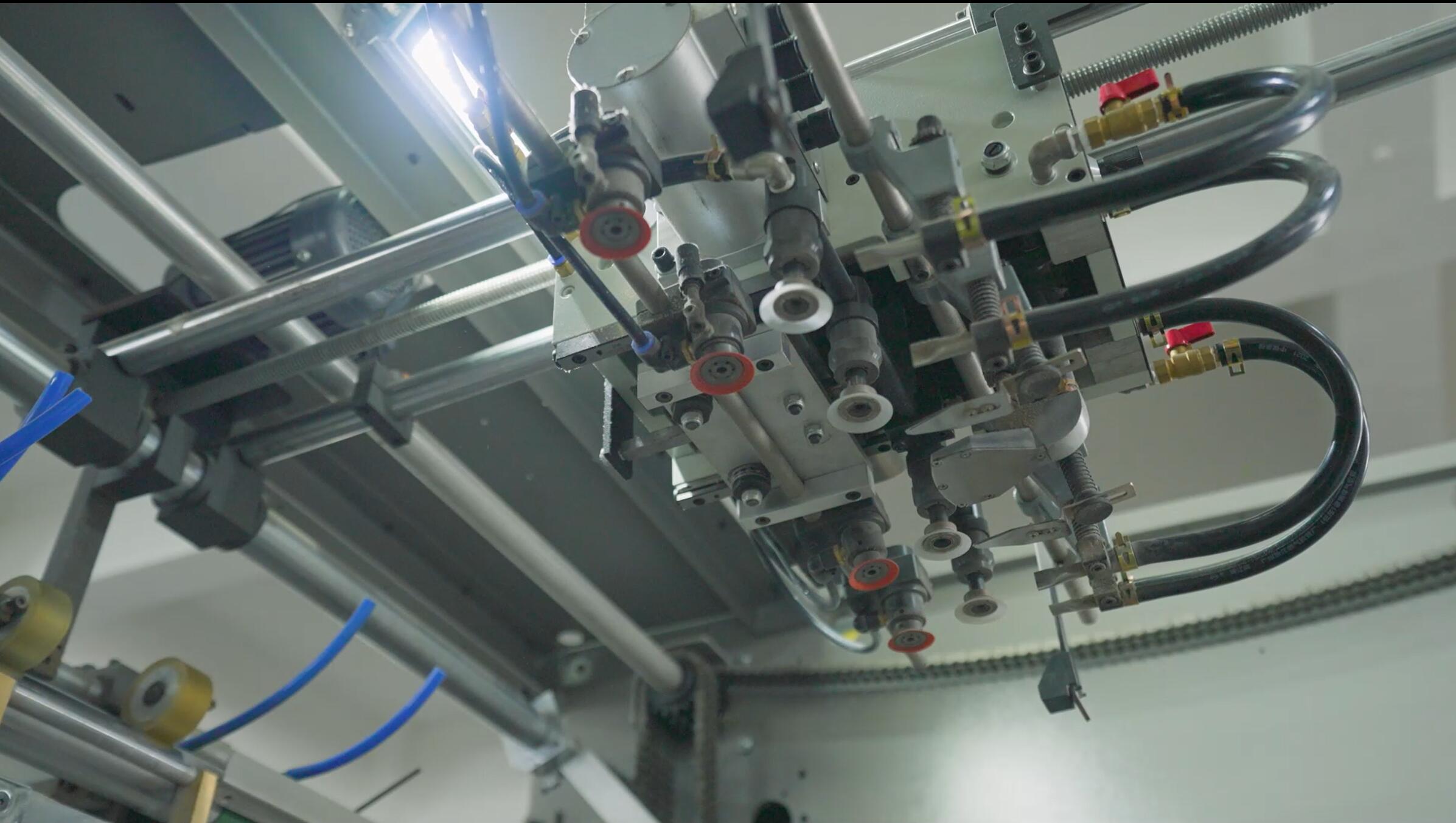

Feeding System for Upper Paper: (Servo Control Feeder)

• Adopting dedicated high-speed feeder to make sure that both the thick and the thin papers can be delivered rapidly and smoothly.

Lifting Platform for Upper Paper

• To assort with high-speed feeder, adopting high-intensive turbine reducer to ensure the stability when speeding up instantly.

Carrier for Upper Paper

• Adopting paper-piling device, feeding paper without stop which can reduce paper supplementing time and increase the working efficiency.

Pre-loading for Upper Paper

• Adopting imported linear guide way and lead screw to ensure the high precision, adjusting the sheet size automatically and saving the paper replacing time infinitely.

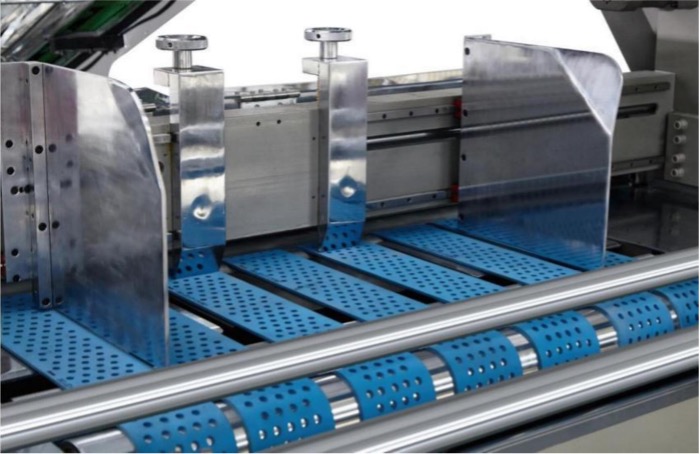

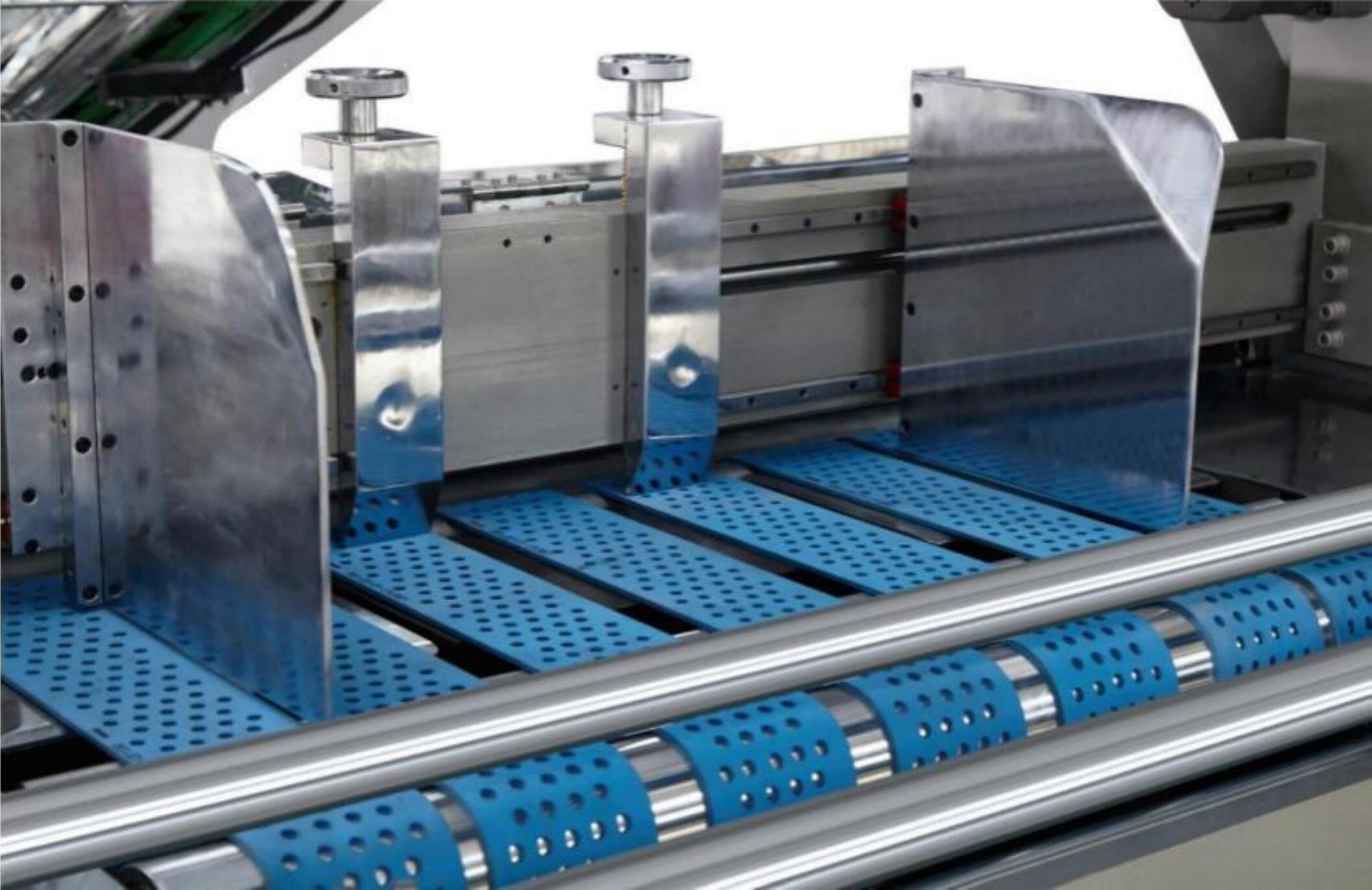

Feeding System for Bottom Paper

• Adopting servo motor electric controlling system that with high sensitivity and speed, which can ensure no struck for paper and convey smoothly at high speed. Frequency converting control cooperate with radio-tube swift over to ensure bottom papers can be completely absorbed, which is easy to operate.

Gluing System

• Adopting thick galvanized steel anilox and the surface was grinded in accuracy, to ensure the glue will be evenly coated on various thickness of paper, the amount of glue can be adjusted to minimum glue consumption. Adopting Liquid automatic control to ensure the glue can be supplied automatically and the continuous production.

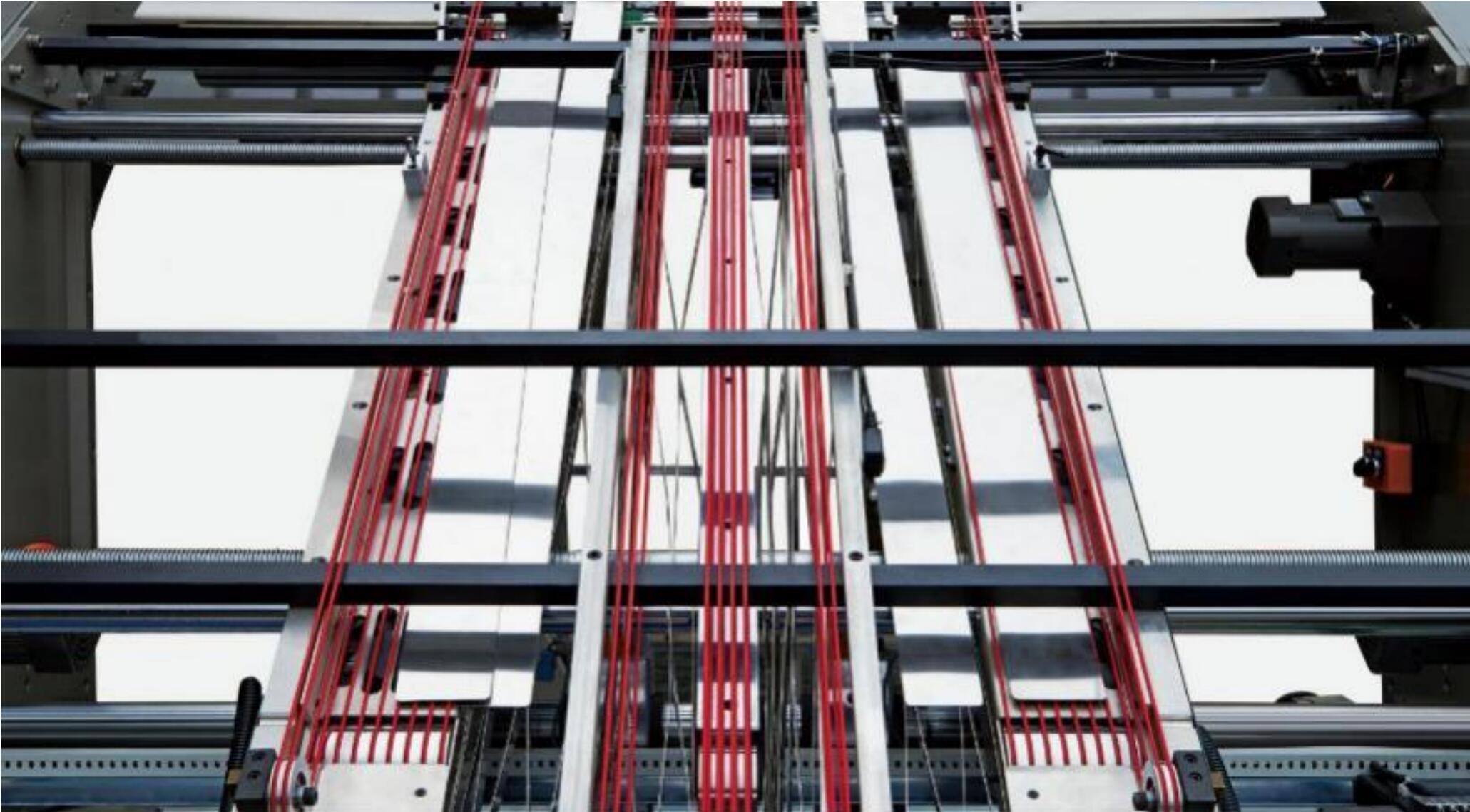

Paper Aligning System

• Adopting advanced high speed motion control servo tracking system to ensure the laminating accuracy.

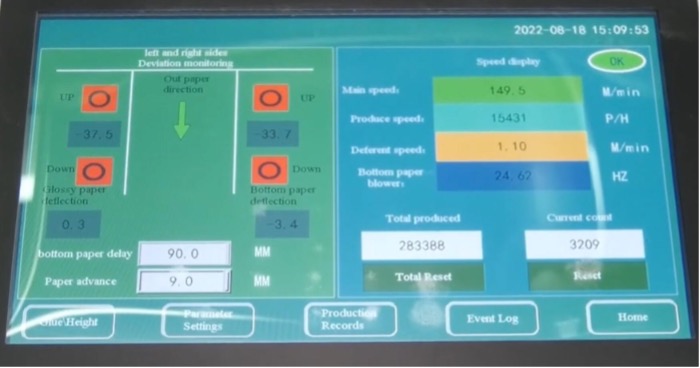

Operating System

• The whole electric control operating system adopts self-developed patent motion control system to make the operation easier and relax, only need to input the sheet size through touch screen and can be able to achieve the automatic adjustment, saving the paper replacing time and reducing the operative difficulty index, which shows the superiority of automation indeed.
• Adopting well-known brand electrical parts
• It can realize remote monitoring and maintenance of equipment.

About FENGCHI

Guangdong FENGCHI Printing Machinery Co., Ltd - High-tech enterprise located in Dongguan, a hub of 'International Manufacturing', boasting a 15,000m² factory with advanced processing and research institutions. Specializing in R&D, production, and sales of high-speed flute laminators and flip flop stackers, our team of experienced engineers and researchers with 20+ years in flute laminators and 35+ years in print pack industry consistently absorb leading-edge technology to meet and exceed customer expectations.

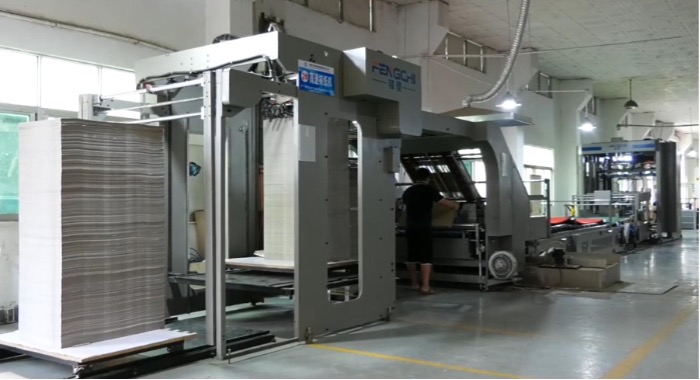

Success Cases

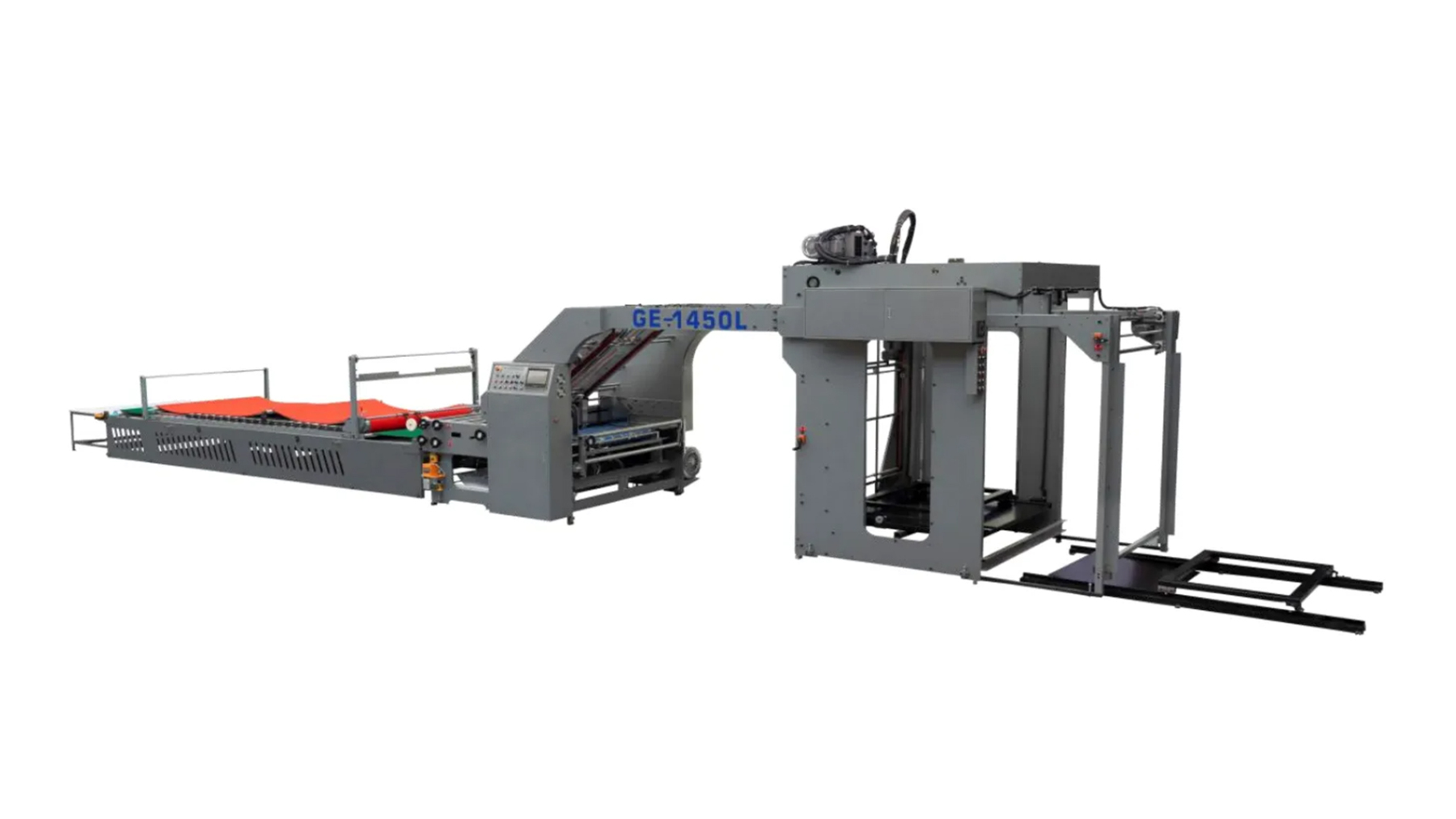

	Paper to Cardboard GE series is universal type for paper to cardboard, art board, cardboard to cardboard, paper to solid board and corrugated board. Full servo drive of top feeder, suction belt feeder with servo tracking system, offering high speed 14000+ pcs/hour.
	Paper to Corrugated Board Gw Series is heavy duty type, strongly for laminating corrugated board of G, F, E, B, C, A flute 2ply, 4ply, upto 10mm thickness, even warp board can be feed smoonthly with high speed. Full servo drive of top feeder, bottom feeder with tracking system provide 22000+ speed.
	Jumbo Carton Jumbo printed paper laminated to corrugated board (3ply, 4ply, 5ply), such as shoes box, TV box, by GW-2200L Intelligent High Speed Flute Lamiantor with lead edge feeder, greatly improved the production of jumbo box.
