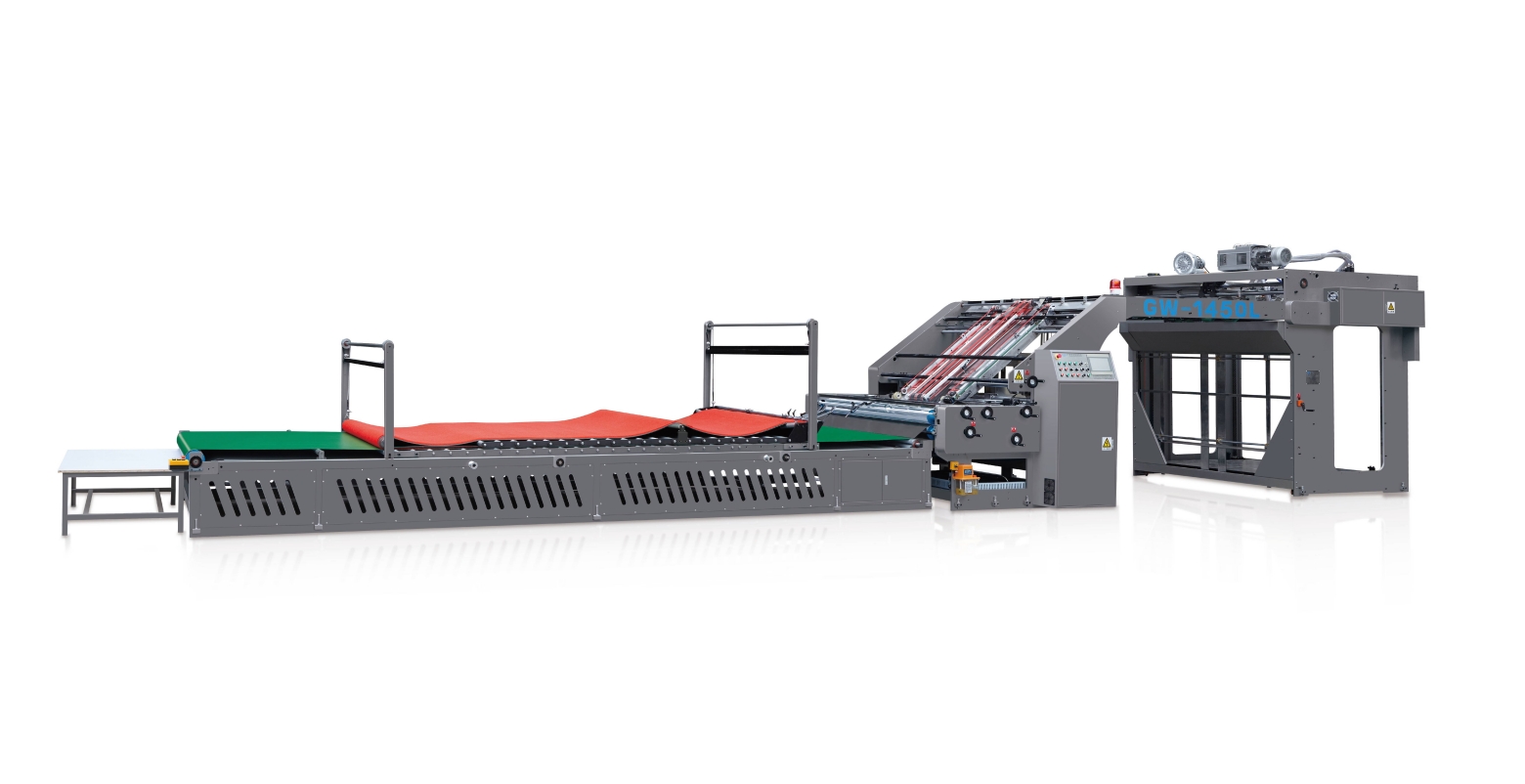

GW 1450L Intelligent High Speed Flute Laminator

$0.00 USD
Quantity
GW 1450L Intelligent High Speed Flute Laminator GW 1450L Intelligent High Speed Flute Laminator GW 1450L Intelligent High Speed Flute Laminator GW 1450L Intelligent High Speed Flute Laminator GW 1450L Intelligent High Speed Flute Laminator



Technical Parameter

Models GW–1450L
Max. Sheet size (WxL) 1450mm x 1450mm
Min. Sheet Size (WxL) 420mm x 380mm

Sheet Thickness

Top paper: 150gsm ~ 700gsm

Bottom paper: F flute ~ 10mm

Max. Working Speed 16000 sheets/hour (165M/Min)
Laminating Accuracy ±1.0mm(Standard Sheet Paper)
Applicable Glue Resin adhesive, starch glue and etc. (PH6~8 will be suitable for laminating glue)
Laminating Accuracy  ±0.5mm (standard sheet paper)
Applicable Glue Resin adhesive, starch glue and etc, (PH 6~8 will be suitable for laminating glue)
Machine Weight 8000kg
Power 380VAC/4P, 26kw
Diemension (L x W x H) 16.3m x 2.4m x 2.55m
Applicable Corrugated board High Strength Normalization 2ply (A,B,E,F flute), 3ply, 5ply, etc.

Note:

Machine speed and accuracy are depended on the paper quality, operation, etc.

In the interest of product improvement, the manufacturer reservses the right to change specifications, features and configurations without notice.
